バイオリアクションチューブ

仕様:15mL 50mL 100mL 600mL
ボトム形状:円錐底 自立底 丸底
包装:発泡ラック包装 袋包装

お問い合わせ
製品概要
製品情報
注文情報
よくあるご質問
推薦製品

製品概要

製品情報

バイオリアクションチューブは、浮遊細胞や微生物の培養によく用いられ、細胞株の研究開発、クローン選択、培地の最適化、組換えタンパク質の開発 などに広く応 用されています。
潔特生物のバイオリアクションチューブは、USP Class VIに準拠するポリプロピレン(PP)材料で作られており、成分が明確で、動物由来成分を含まず、優れた化学的安定性と強い耐衝撃性を備えています。高品質のPVDF/PTFEメンブレンにより、細菌を遮断しながら持続的な通気を確保します。

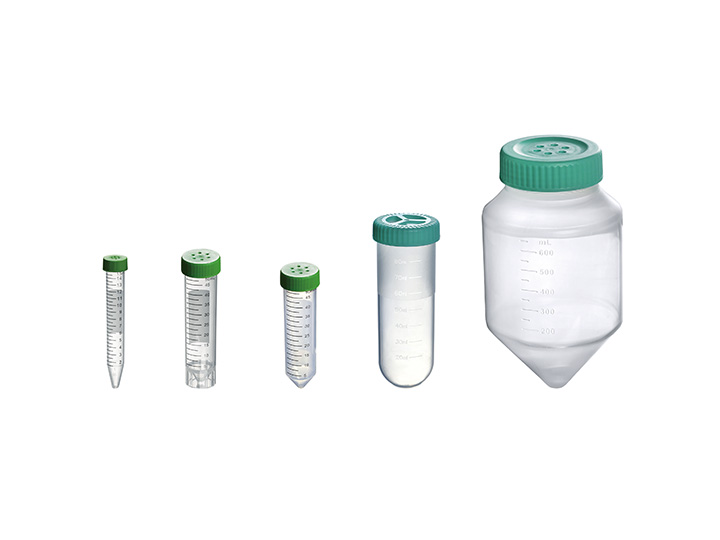

15mL、50mL、100mL、600mLの4種類の仕様を提供しており、浮遊細胞や微生物の培養および回収などのニーズに適しています。

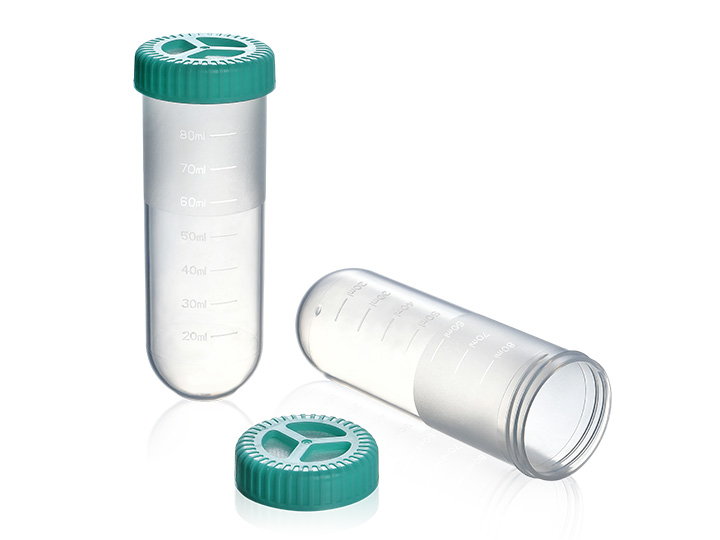

シルクスクリーン印刷の白色マーキングエリアにより、実験の記録が容易

シルクスクリーン印刷の白色マーキングエリアにより、実験の記録が容易

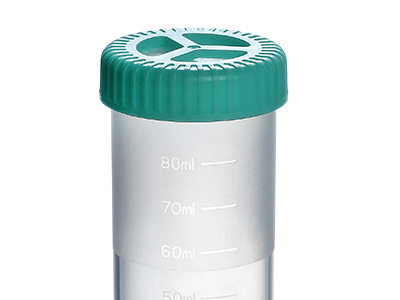

360°フロスト加工の書き込みエリアにより、マーキングや実験記録が容易

360°フロスト加工の書き込みエリアにより、マーキングや実験記録が容易

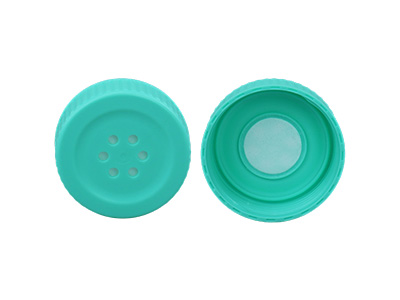

連続換気用の疎水性フィルターキャップ

連続換気用の疎水性フィルターキャップ

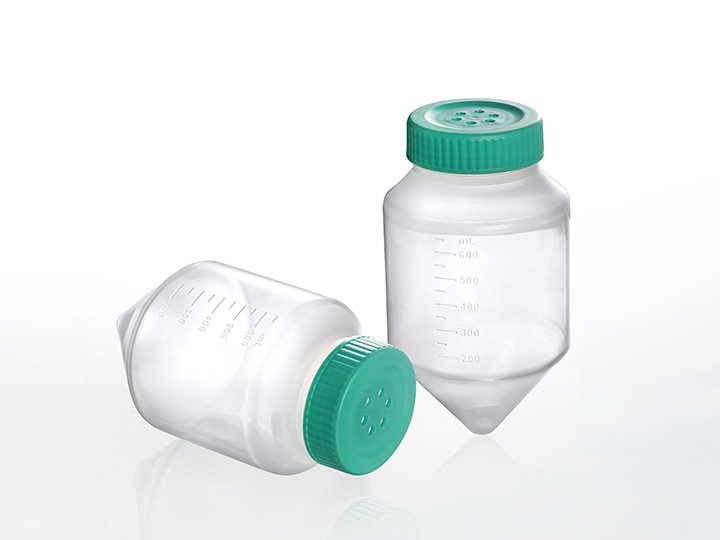

600 mL バイオリアクターチューブ

600 mL バイオリアクターチューブ

特徴

* チューブ本体は高品質のPP材料で作られており、成分が明確で、動物由来成分を含まず、優れた化学的安定性と強い耐衝撃性を備える
* 高品質のPVDF(15mL、50mL)/PTFE(100mL、600mL)ろ過メンブレンにより、細菌を遮断しながら持続的な通気を確保
* 15mL、50mL、100mL、600mLなどの多様な仕様と、円錐底、丸底、自立型の3種類のボトム形状を選択可能
* チューブ本体は内外ともに滑らかで、厚みと色合いが均一であり、読みやすくて精密な目盛が刻まれており、観察が容易
* 放射線滅菌済み(SAL10-6
* DNaseフリー/RNaseフリー、非発熱性、非細胞毒性

材質

チューブ本体 ポリプロピレン(PP)、チューブキャップ 高密度ポリエチレン(HDPE)、ろ過メンブレン ポリフッ化ビニリデン(PVDF)/ポリテトラフルオロエチレン(PTFE)、 全てがUSP Class VIに準拠する

製品情報

Jet Biofil ENG Catalogue 2025

カタログ

Jet Biofil ENG Catalogue 2025

書類ダウンロード

注文情報

バイオリアクションチューブ
カタログ番号
容量(mL)
メンブレンタイプ
ボトム形状
最大RCF(×g)
滅菌
包装
入数/袋(ラック)
入数/箱
BRT000015 15.0 PVDF 円錐状 12,000 滅菌済み 袋包装 10 100
BRT010015 15.0 PVDF 円錐状 12,000 滅菌済み
発泡ラック包装
50 300
BRT000050 50.0 PVDF 円錐状 12,000 滅菌済み 袋包装 10 100
BRT010050 50.0 PVDF 円錐状 12,000 滅菌済み
発泡ラック包装
25 300
BRT011050 50.0 PVDF
自立型
6,000 滅菌済み 袋包装 10 100
BRT010100 100.0 PTFE
丸底
6,000 滅菌済み 袋包装 25 300
BRT000600 600.0 PTFE 円錐状 6,000 滅菌済み 袋包装 1 32

カタログ番号
容量(mL)
Speciality
滅菌
入数/袋(ラック)
入数/箱
BRC000050 50 Tube Cap 滅菌済み 25 1000

よくあるご質問

Attention for the use of centrifuge tubes

* What is the maximum rotational speed that the centrifuge tubes of Jet Biofil can withstand?

21000xg. Due to the different center distance of the rotor shaft of different centrifuges, the centrifugal force generated at the same speed (rpm) is also different, so we usually use the relative centrifugal force (RCF) (g) to represent the tolerance degree of the centrifuge tube in the process of rotating centrifugation.



* Can the centrifuge tubes of Jet Biofil hold some kind of solution? How about its chemical compatibility?

It is necessary to pay attention to whether the sample is compatible with the material of the centrifuge tube as is used, especially if the sample is some chemical reagents or organic solvents, and the Chemical Compatibility Table of PP Plastic Materials can be used as reference. Samples with low or incompatible centrifugal compatibility are not recommended, and customers can also do pre-experiments to have a test.



* What is the possible reason for the burst of the centrifuge tubes in the process of centrifuge?

When centrifuging, it is necessary to pay attention to the chosen centrifugal force cannot exceed the maximum centrifugal force that the product itself can withstand.

Please notice that the maximum centrifugal force (RCF) that can be withstood may be decreased when the sample is centrifuged at low temperature or the sample is an organic solvent/volatile irritant.



* What should be pay attention to when using the centrifuge tubes to preserve the samples at a low temperature?

When the sample is preserved below 0 ℃, the applicability of the centrifuge tube is closely related to the composition of the solution and preservation conditions. The centrifuge tube cannot be placed on the foam support, nor the bottom of the tube is in contact with the thermal insulation materials. And please use a hollow support when preserving the samples at low temperature. Otherwise, as part of the centrifuge tube is protected by thermal insulation material, while the other part is not, the temperature difference of the overall tube body makes the tube prone to burst. In addition, please reserve a space of at least 10% of the total volume to avoid sample spillage or tube burst caused by volume expansion due to liquid solidification.



* Why the centrifuge tube smell special when its package is opened?

If you smell some odor in the product you receive, it is not because of the abnormal quality of the product. This is because some molecules will be vaporized and retained in the product/packaging in the process of high temperature injection molding/irradiation sterilization of the raw material plastic particles of centrifuge tube products.

The materials used for making the centrifuge tubes of Jet Biofil comply to the USP Class VI standards (USP Class VI Chapter<87>, "Biological reactivity Tests, in Vitro" and Chapter<88>, "Biological Reactivity Tests, in vivo”). No cytolysis or cytotoxic effects were observed through the verification. And the outgoing products in the process of quality inspection have passed various verification tests and are in line with the product release standards.
