Product Laboratory Instruments Centrifuge Series High-Speed Micro (Freezing) Centrifuge D1016R

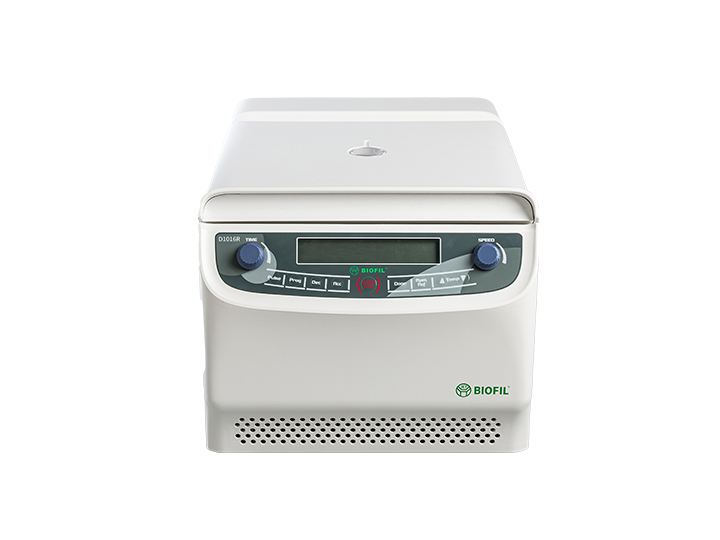

High-Speed Micro (Freezing) Centrifuge D1016R

Get Quotation

Introduction

Order Information

Recommended Products

Introduction

Product Information

* Seamless chamber wrap technology for high energy transfer efficiency

* Biosafety rotor with triple sealing ensures biological safety

* High-strength aluminum alloy rotor withstands high-temperature and high-pressure sterilization

* External condensate tank prevents water accumulation in the centrifuge chamber

* One-touch rapid pre-cooling from 20°C to 4°C in about 4 minutes

* Maintains 4°C even at maximum speed operation

* Motor lock adsorption design allows single-handed chamber door closure

* User-friendly design with 9 acceleration and 9 deceleration rates, storing up to 9 programs for experimental needs

* Maximum relative centrifugal force of 21960 × g

* Five rotor options compatible with 0.2mL, 0.5mL, 1.5mL, 2mL, and 5mL tubes, as well as PCR 8-strip tubes

Order Information

Parameter Type	Parameter Value
Model	D1016R
Max Speed	15200 rpm (200-15200 rpm), increment: 100 rpm
Max RCF	21960 × g, increment: 10 × g
Capacity	1.5/2 mL × 24; 0.5 mL × 36; PCR 8-strip × 4; 5 mL × 12; 5 mL × 18
Temperature Range	-20℃ to 40℃
Operating Modes	30 sec - 99 min (timed), HOLD (continuous), pulse (short spin)
Drive Motor	Brushless DC motor
Safety Features	Dual door lock, overspeed, overtemperature diagnostic system
Power	Single-phase, 220-230V~, 50Hz, 400W / 120V~, 50Hz/60Hz, 500W
Dimensions (mm)	(W) 332 × (D) 545 × (H) 297
Weight	30 kg
Acceleration/Deceleration Time	45s ↑ / 50s ↓
Noise Level	≤56 dB
Additional Functions	Speed/RCF conversion, operation progress display, sound alerts, program storage
