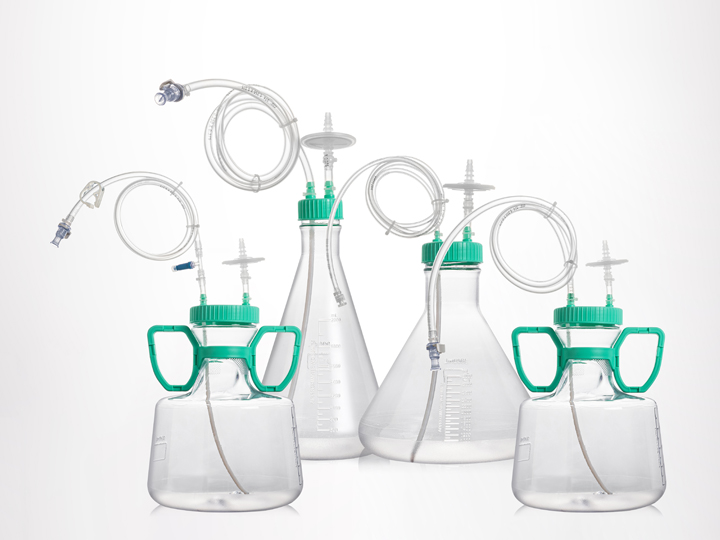

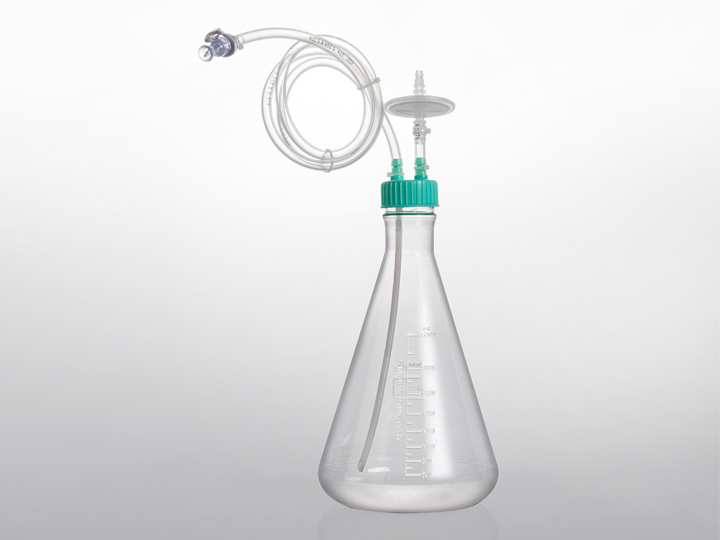

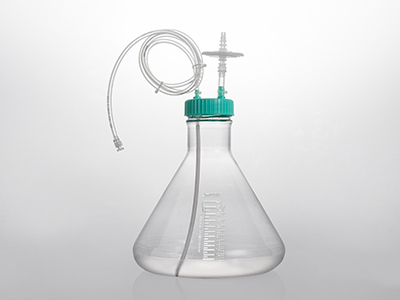

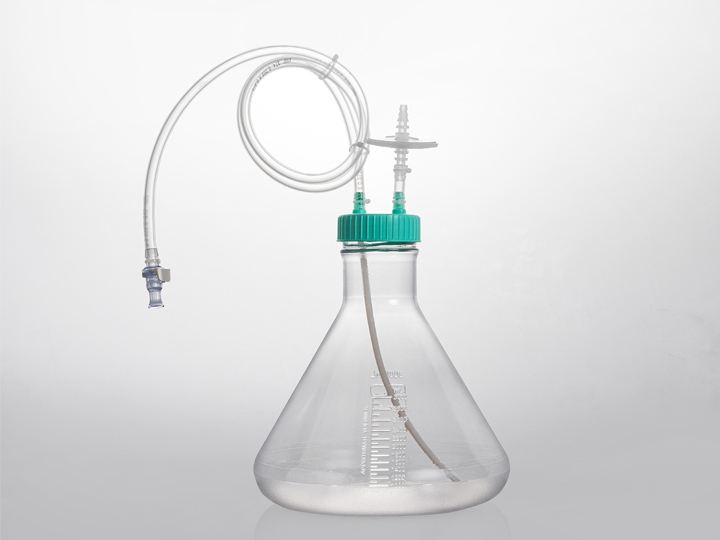

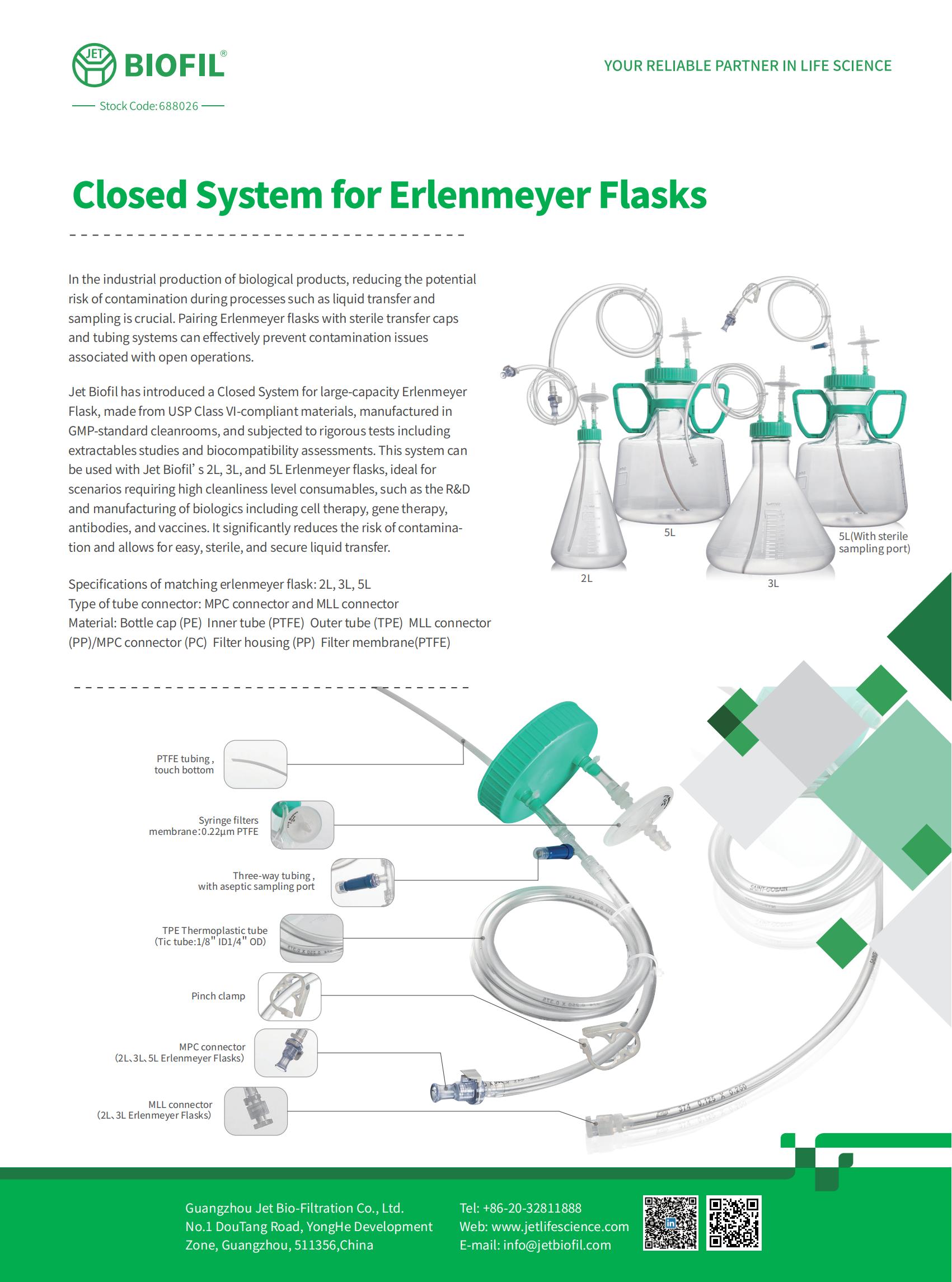

Closed System for Erlenmeyer Flasks

Specifications of matching erlenmeyer flask: 2 L 3 L 5 L
Type of tube connector: Male MPC connector and MLL connector
Packaging: Three-layer outer medical packaging
Get Quotation
Introduction
Product Information
Order Information
Recommended Products

Introduction

Product Information

In the industrial production of biological products, reducing the potential risk of contamination during processes such as liquid transfer and sampling is crucial. Pairing Erlenmeyer flasks with sterile transfer caps and tubing systems can effectively prevent contamination issues associated with open operations.

Jet Biofil has introduced a Closed System for large-capacity Erlenmeyer Flasks, made from USP Class VI-compliant materials, manufactured in GMP-standard cleanrooms. The system features extremely low extractable levels and excellent biosafety, making it suitable for fluid transfer processes during the research and production of biologics such as cell therapy, gene therapy, antibodies, and vaccines. After the transfer, the transfer cap can be replaced with ventilate cap to facilitate cell culture, which significantly reduces the risk of contamination and allows for easy, sterile, and secure liquid transfer.


Customization Service


All Close System Solutions can be customized accordingly



MPC connector and MLL connector are available to meet the connection requirements of different types of tubes

MPC connector and MLL connector are available to meet the connection requirements of different types of tubes

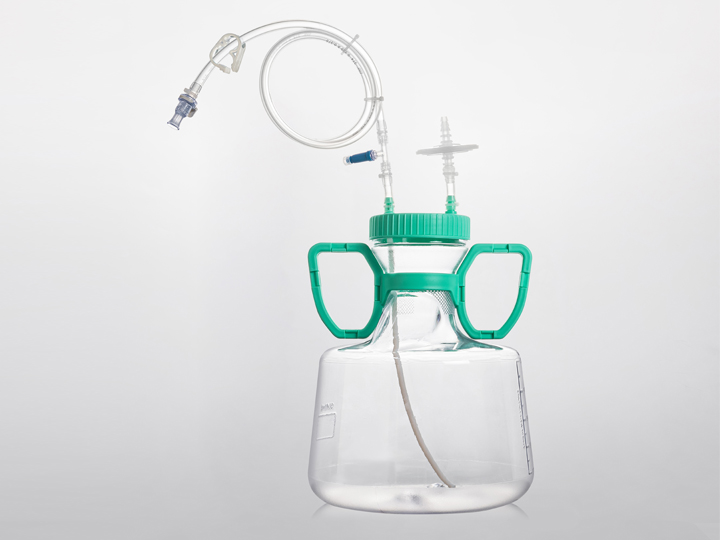

The closed transfer system of 5 L erlenmeyer flasks is equipped with a three-way port for sterile sampling

The closed transfer system of 5 L erlenmeyer flasks is equipped with a three-way port for sterile sampling

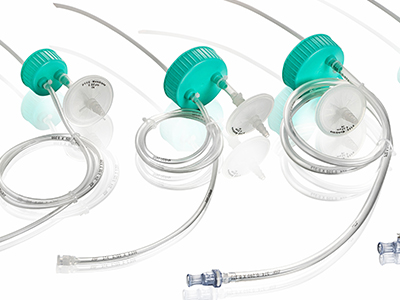

The bottle cap is connected by injection molding to reduce the risk of leakage and residue

The bottle cap is connected by injection molding to reduce the risk of leakage and residue

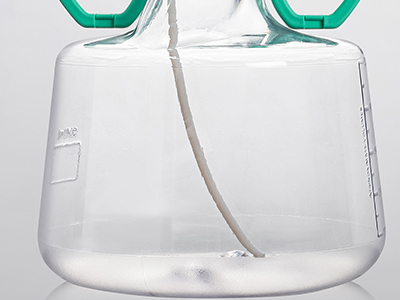

The inner tube can extend to the bottom of the bottle to complete liquid transfer. The length and aperture of the tube can also be customized according to requirements

The inner tube can extend to the bottom of the bottle to complete liquid transfer. The length and aperture of the tube can also be customized according to requirements

Features

* The closed transfer system can effectively reduce the risk of contamination in the process of liquid transfer
* The medical triple bagged package conforming to higher cleanliness requirement under the GMP production
* The bottle cap is connected by injection molding to reduce the risk of leakage and residue
* The length and aperture of the tube can also be customized
* Authoritative third-party inspected, products have extremely low extractable levels and excellent biosafety
* The inner tube can be extended to the bottom of the bottle to complete liquid transfer
* Male MPC connector and MLL connector are available to meet the different types of tube connections
* A three-way port for aseptic sampling is available in the 5L closed system, allowing safe and aseptic sampling
* Sterilized by irradiation, SAL 10-6
* DNase/RNase-free, Pyrogenic free, non-cytotoxic

Material

* Bottle cap: Polyethylene (PE)
* Inner tube: polytetrafluoroethylene (PTFE)
* Outer tube : thermoplastic elastomer (TPE)
* MLL connector: polypropylene (PP)
* MPC connector: Polycarbonate(PC)
* Filter housing: polypropylene (PP)
* Filter membrane: polytetrafluoroethylene(PTFE)
* Conforming to USP Class VI standards

Product Information

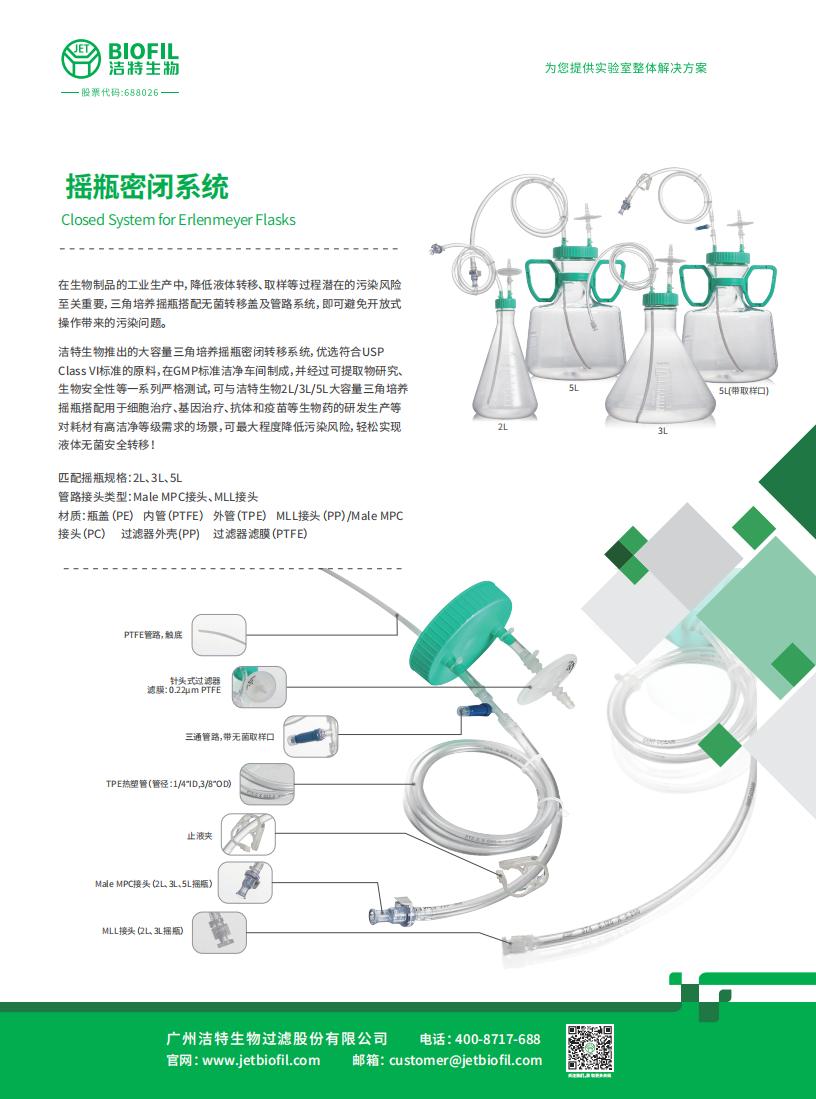

Closed System Series for Aseptic Transfers

Brochure

Closed System Series for Aseptic Transfers

Download File
Closed System for Erlenmeyer Flasks
Jet Biofil ENG Catalogue 2025

Catalogue

Jet Biofil ENG Catalogue 2025

Download File
Closed System for Erlenmeyer Flasks

Brochure

Closed System for Erlenmeyer Flasks

Download File

Order Information

Cat. No. Product Name Dimension Filter Sterile Qty.Per Bag Qty.Per Case
Tube (Inner and Outer Diameters) Length of Liquid Tube (cm) Tube Connector
TAB300125 Closed System for 125 mL Culture Flasks Two-port 60cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ30mm Y 1 4
TAB300250 Closed System for 250 mL Culture Flasks Two-port 60cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ30mm Y 1 4
TAB300500 Closed System for 500 mL Culture Flasks Two-port 60cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ50mm Y 1 4
TAB300000 Closed System for 1000 mL Culture Flasks Two-port 60cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ50mm Y 1 4
TAB301000 Closed System for 1000 mL Culture Flasks Two-port 60cm, 1/4" ID, 3/8" OD Male MPC 0.22μm, PTFE, φ50mm Y 1 4
TAB302000 Closed System for 1000 mL Culture Flasks Two-port 60cm, 1/4" ID, 7/16" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 4
TAB300002 Sterile Transfer Cap of 2 L Culture Flasks Two-port 120cm, 1/4" ID, 3/8" OD Male MPC 0.22μm, PTFE, φ50mm Y 1 6
TAB310002 Sterile Transfer Cap of 2 L Culture Flasks Two-port 120cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ50mm Y 1 6
TAB331002 Sterile Transfer Cap of 2 L Culture Flasks Two-port 50cm, 1/4" ID, 7/16" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 6
TAB300003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 120cm, 1/4" ID, 3/8" OD Male MPC 0.22μm, PTFE, φ50mm Y 1 6
TAB310003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 120cm, 1/8" ID, 1/4" OD MLL 0.22μm, PTFE, φ50mm Y 1 6
TAB331003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 50cm, 1/4" ID, 7/16" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 6
TAB311003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 50cm, 1/8" ID, 1/4" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 6
TAB321003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 120cm, 1/4" ID, 3/8" OD Heat-Sealing Port with Sterile Sampling Port 0.22μm, PTFE, φ50mm Y 1 6
TAB322003 Sterile Transfer Cap of 3 L Culture Flasks Two-port 120cm, 1/8" ID, 1/4" OD Heat-Sealing Port with Sterile Sampling Port 0.22μm, PTFE, φ50mm Y 1 6
TAB300005 Sterile Transfer Cap of 5 L Culture Flasks Two-port 100cm, 1/4" ID, 3/8" OD Male MPC with Sterile Sampling Port 0.22μm, PTFE, φ50mm Y 1 6
TAB320005 Sterile Transfer Cap of 5 L Culture Flasks Two-port 100cm, 1/4" ID, 3/8" OD Male MPC 0.22μm, PTFE, φ50mm Y 1 6
TAB331005 Sterile Transfer Cap of 5 L Culture Flasks Two-port 50cm, 1/4" ID, 7/16" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 6
TAB311005 Sterile Transfer Cap of 5 L Culture Flasks Two-port 50cm, 1/8" ID, 1/4" OD Heat-Sealing Port 0.22μm, PTFE, φ50mm Y 1 6
*MLL male Luer connector with plug; MPC male MPC connector with plug
