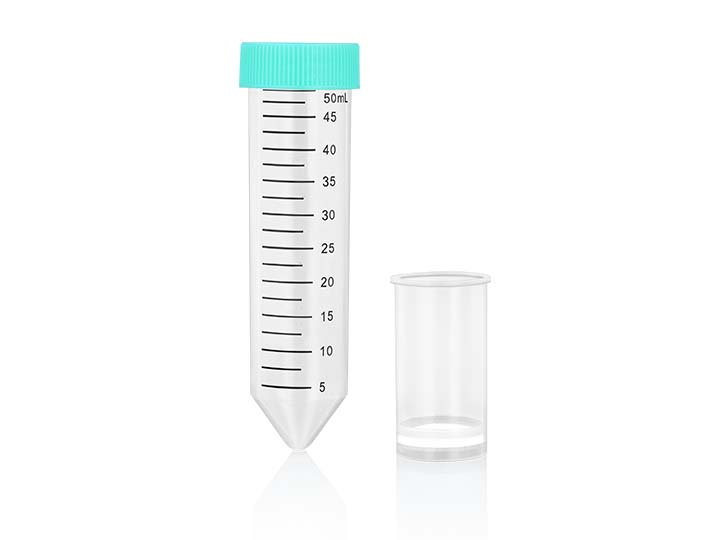

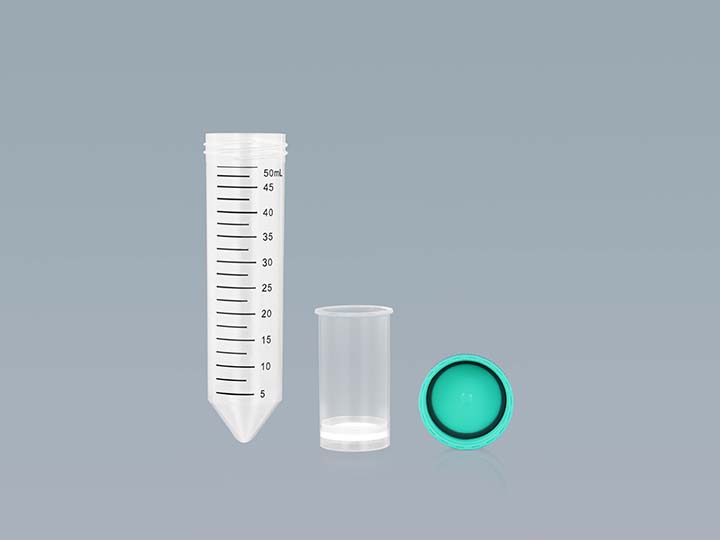

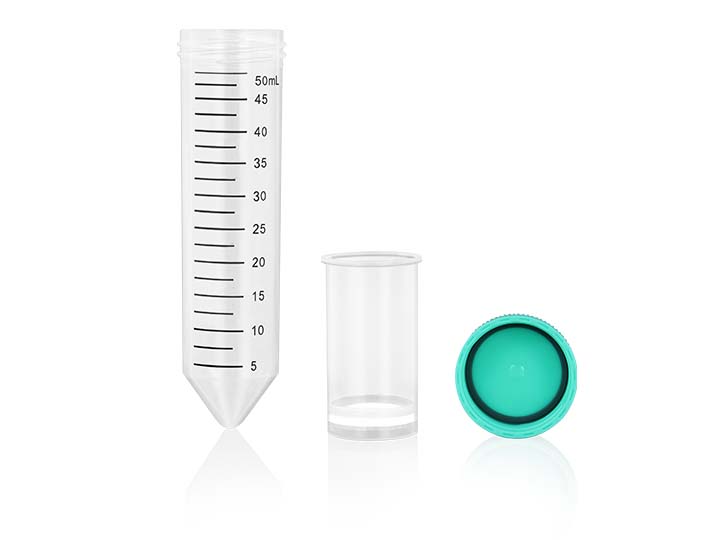

Plasmid Maxiprep Purification Column

Filter Membrane Layers: 6 layers

Purification Column Volume: 20 mL

Centrifuge Tube Volume: 50 mL

Get Quotation

Introduction

Product Information

Order Information

Recommended Products

Introduction

Product Information

Plasmid Maxiprep Purification Column is primarily used for the extraction and purification of plasmid DNA, widely applied in genetic engineering and molecular biology research. Jet Biofil’s Plasmid Purification Column is made from medical-grade, six-layer glass fiber membrane, ensuring stable performance, high binding capacity, and strong impact resistance. It can be used with kits for large-scale plasmid extraction, quickly preparing over 1000 µg of plasmid DNA. The product is suitable for applications such as enzyme digestion, transformation, PCR amplification, sequencing, and library construction.

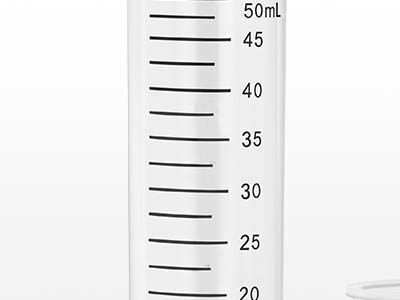

Clear, accurate black graduations with an accuracy of ±2%

Handling up to 20 mL of sample in a single run, quickly yielding more than 1000 µg of plasmid DNA

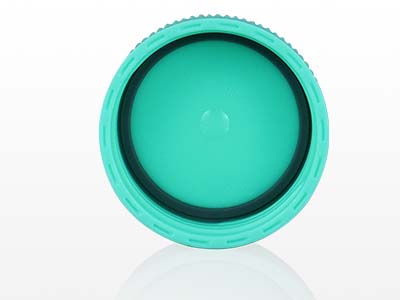

Tube cap design includes an internal O-ring as gasket, ensuring high sealing integrity to prevent sample leakage

1 µm large-pore filter membrane offers strong permeability and prevents column clogging

Features

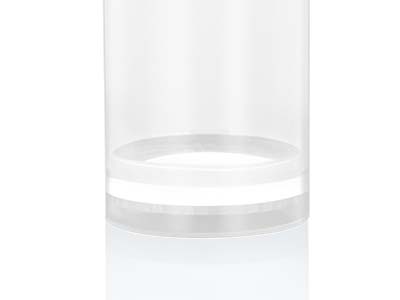

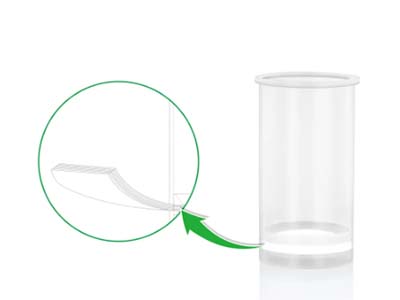

* Injection molded purification column results a robust structure. The bottom grid, combined with a compression ring, securely holds the filter membrane in place, preventing breakage during centrifugation, and supporting a maximum RCF of 6,000×g

* 1µm large-pore filter membrane offers strong permeability and prevents column clogging

* Handling up to 20 mL of sample in a single run, quickly yielding more than 1000 µg of plasmid DNA

* Tube cap design includes an internal O-ring as gasket, ensuring high sealing integrity to prevent sample leakage

* Clear, accurate black graduations with an accuracy of ±2%, allowing precise operation for lab personnel

* Extracting high-purity plasmid DNA, with an OD260/OD280 ratio of 1.8-2.0 and an OD260/OD230 ratio greater than 2.0

* Compatible with most standard reagent kits

* DNase/RNase-free, non-pyrogenic

Material

* Filter membrane: Glass fiber, Purification column body and centrifuge tube body: polypropylene (PP), Tube cap: high-density polyethylene (HDPE), O-ring Gasket: Thermoplastic Elastomer (TPE),
* Conforming to USP Class VI standards

Product Information

Catalogue

Jet Biofil ENG Catalogue 2025

Download File

Order Information

Cat. No.	Description	Tube Volume	Purification column Volume	Membrane Layers	Sterile	Qty./Bag	Qty./Case
NAP006050	Plasmid Maxiprep Purification Column	50 mL	20 mL	6	N	50	200
