JetSpin® Centrifugal Filters

Inner Filter Specification: 0.5 mL  5 mL  15 mL
Tube Specification: 2 mL  15 mL  50 mL
Molecular weight cut off (MWCO): 3KDa  5KDa  10KDa  30KDa  50KDa  100KDa

Get Quotation
Introduction
Product Information
Order Information
Recommended Products

Introduction

Product Information

The JetSpin® Centrifugal Filters have been newly upgraded! The filter membranes are made from premium polyethersulfone (PES), offering low protein adsorption, rapid filtration speed, and high recovery rates. Their single/double-sided vertical filter structure and support rib design provide a larger filtration area, reduced dead volume, and enhanced structural stability, allowing for higher centrifugal force compatibility while minimizing process losses.

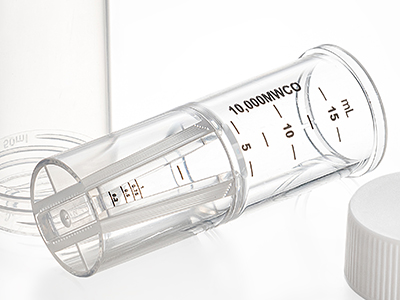

Molecular weight cutoff(MWCO) identification and volume graduation are etched on the side of the filter for easy identification and analysis

Molecular weight cutoff(MWCO) identification and volume graduation are etched on the side of the filter for easy identification and analysis

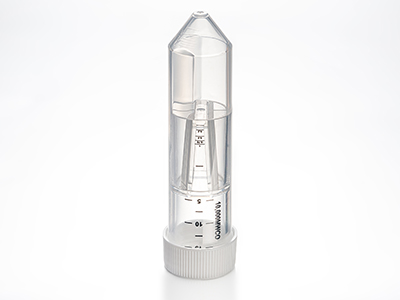

Built-in vertical polyethersulfone (PES) membrane filtration device efficiently recovers active components within the molecular weight range

Built-in vertical polyethersulfone (PES) membrane filtration device efficiently recovers active components within the molecular weight range

Features

* Single (0.5 mL) /Double-sided (5 mL, 15 mL) vertical filter structure provides an effective filtration area of up to 9.7 cm²
* Both 15 mL and 50 mL centrifuge tubes feature support ribs that are tightly integrated with membranes, facilitating enhanced structural stability and preventing membrane clogging or rupture under excessive centrifugal force
* Rapidly concentrates samples in 5–25 minutes, achieving a concentration factor exceeding 100-fold
* Minimal void volume, reduces sample loss during centrifugation
* Over 85% of protein recovery rate with excellent repeatability
* Precise black graduations on the tube body with clear MWCO indicators, and writing area for easy marking
*Membranes are secured into the filter shell using heat-pressing processes, without chemical leaching from adhesives that could contaminate samples and impact analysis results

Material

* Centrifuge tube: Polypropylene (PP)
* Tube cap: High-density polyethylene (HDPE)
* Filter: Methacrylate-butadiene-styrene (MBS)
* Filter membrane: Polyethersulfone (PES)
* Conforming to USP Class VI standards

Product Information

Jet Biofil ENG Catalogue 2025

Catalogue

Jet Biofil ENG Catalogue 2025

Download File
JetSpin<sup>®</sup> Centrifugal Filters

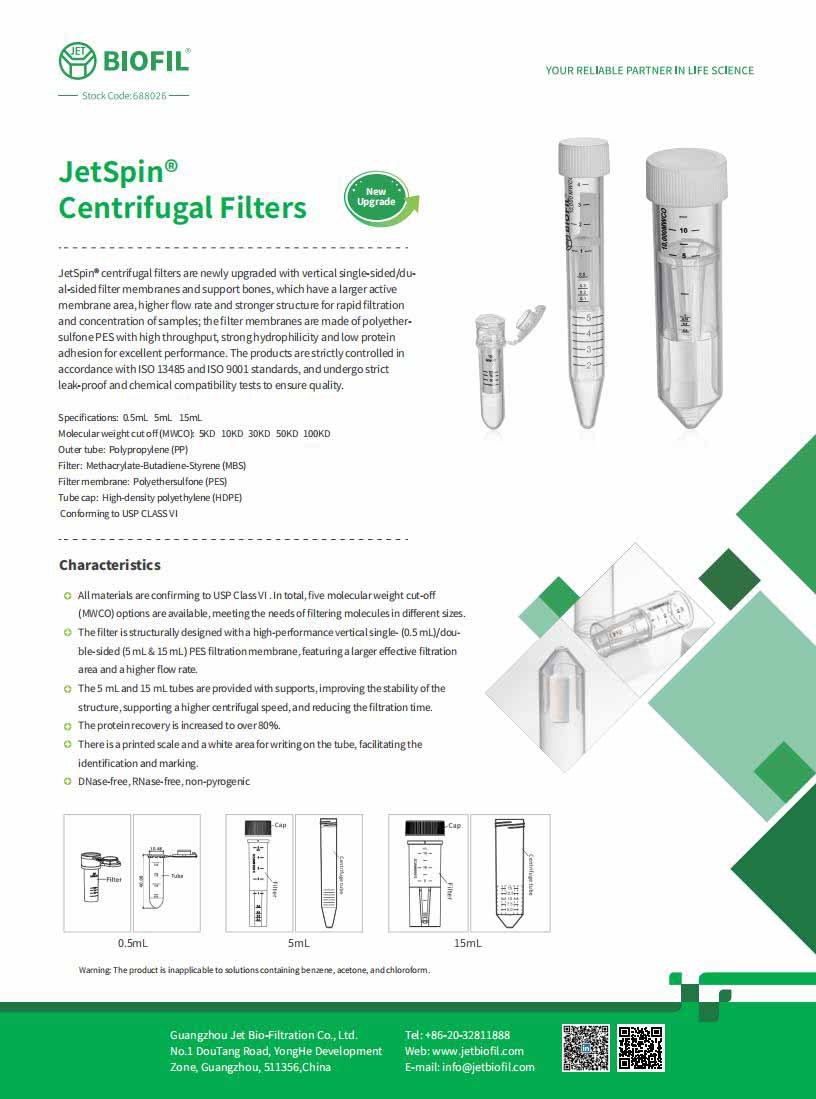

Brochure

JetSpin® Centrifugal Filters

Download File

Order Information


Cat. No. Inner Filter Specification (mL) Tube Specification (mL) Effective Filtration Area (cm²) Maximum Initial Sample Volume Sterilization MWCO (KDa) Maximum Centrifugal Force (Fixed Angle Rotor) ×g Maximum Centrifugal Force (Swinging Bucket Rotor) ×g Qty. Per Box Qty. Per Case
FTT103105 0.5 2 0.65 0.5 mL for fixed angle rotor N 3 10,000 - 25 300
FTT105105 0.5 2 0.65 N 5 10,000 - 25 300
FTT110105 0.5 2 0.65 N 10 10,000 - 25 300
FTT130105 0.5 2 0.65 N 30 10,000 - 25 300
FTT150105 0.5 2 0.65 N 50 10,000 - 25 300
FTT100105 0.5 2 0.65 N 100 10,000 - 25 300
FTT103150 5.0 15 3.50 4 mL for fixed angle rotor, 5 mL for swinging bucket rotor N 3 5,000 4,000 24 96
FTT105150 5.0 15 3.50 N 5 5,000 4,000 24 96
FTT110150 5.0 15 3.50 N 10 5,000 4,000 24 96
FTT130150 5.0 15 3.50 N 30 5,000 4,000 24 96
FTT150150 5.0 15 3.50 N 50 5,000 4,000 24 96
FTT100150 5.0 15 3.50 N 100 5,000 4,000 24 96
FTT403500 15.0 50 9.70 12 mL for fixed angle rotor, 15 mL for swinging bucket rotor N 3 5,000 4,000 8 96
FTT503500 15.0 50 9.70 N 3 5,000 4,000 24 96
FTT405500 15.0 50 9.70 N 5 5,000 4,000 8 96
FTT505500 15.0 50 9.70 N 5 5,000 4,000 24 96
FTT410500 15.0 50 9.70 N 10 5,000 4,000 8 96
FTT510500 15.0 50 9.70 N 10 5,000 4,000 24 96
FTT430500 15.0 50 9.70 N 30 5,000 4,000 8 96
FTT530500 15.0 50 9.70 N 30 5,000 4,000 24 96
FTT450500 15.0 50 9.70 N 50 5,000 4,000 8 96
FTT550500 15.0 50 9.70 N 50 5,000 4,000 24 96
FTT400500 15.0 50 9.70 N 100 5,000 4,000 8 96
FTT500500 15.0 50 9.70 N 100 5,000 4,000 24 96
